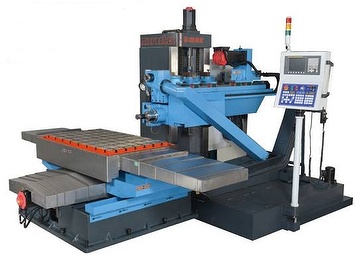

Special Table Lengthen Type - Mold Drilling Machine System GD-2500 HMT / NC

Item No.: GD-1200HMNC,
GD-1500HMNC, GD-1800HMNC,
GD-2200HMNC, GD-2500HMNC
Drill Capacity:
Hole size: 3-32mm
Drilling Length:1000-1500mm
Mill & tap:
hole size: M5-M16
max. diameter of mill:4" (100mm)
max. length of mill & tap: 150-300mm
Option:
360 degree 1 index rotary working table
Head tilting
Gun drill grinder

Items per page
items
  • Certification:CE
  • Made In:Taiwan, ROC
  • Model No.:GD-1200 HM / NC
  • MOQ:1 Sets
  • Certification:CE
  • Made In:Taiwan, ROC
  • Model No.:GD-1500 HM / NC
  • MOQ:1 Sets
  • Certification:CE
  • Made In:Taiwan, ROC
  • Model No.:GD-2500 HM / NC
  • MOQ:1 40' Container
  • Certification:CE
  • Made In:Taiwan, ROC
  • Model No.:GD-3000 HM / NC
  • MOQ:1 Sets
